Frame:355~560mm
Power: 185kW~2240kW
Voltage：3000V~11000V
Frequency：50Hz/60Hz
Poles：2P ~ 12P
Protection grade: IP55
Cooling method: IC411
Explosion proof mark:
ExdⅠMb、Exd ⅡB T4 Gb Exd ⅡC T4 Gb

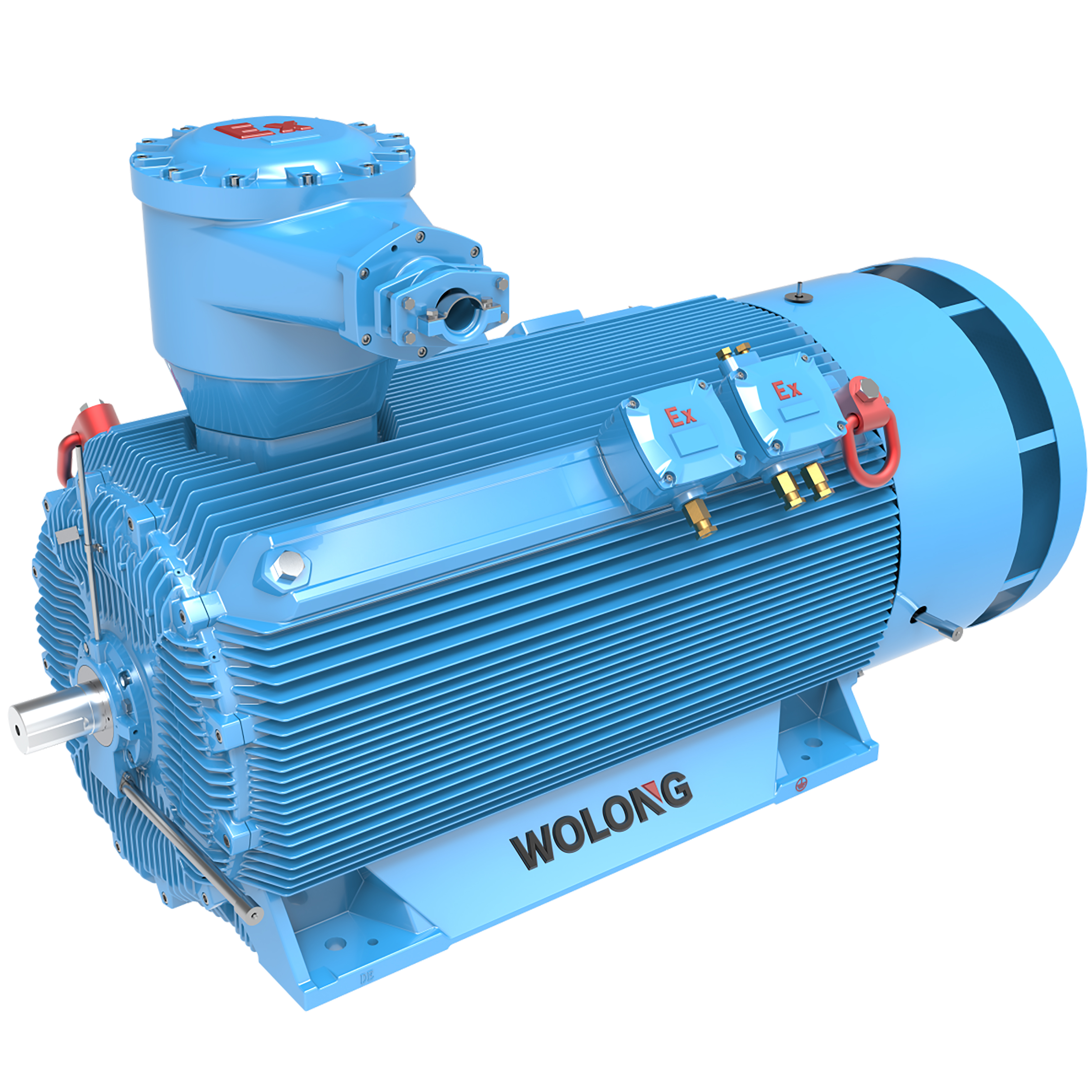

YB2/YB3/YBX3 series of high-voltage flameproof three-phase asynchronous motors adopt advanced international high-voltage and high-efficiency medium-sized motor design and manufacturing concepts, combined with the company’s long-term technology and experience in producing high-voltage explosion-proof motors, and adopt new and reliable new technologies and new materials . The products are well-manufactured, excellent in performance, and reliable in operation.
The energy efficiency grades of the series motors are YB2-IE2 , YB3-IE3, and YBX3-IE4.
It is suitable for hazardous areas of zone 1 and zone 2 with explosive environment. It can be used in different industries such as petrochemical industry, coal mines, mines, ports, power plants, machinery industry, etc., used to drive various general machinery, such as fans, compressors, feedwater pumps, crushers, winches, centrifuges, cutting machine tools, transportation machinery and so on,it is the most ideal drive equipment.
